Ernest Henry Mine Water Storages

Projects /

Mining

Detailed design for civil works supporting mine water management

Project Owner

Evolution Mining

Location

Cloncurry

Completed

2023

Civil IQ delivered the detailed civil design for a series of water management infrastructure upgrades at Evolution Mining's Ernest Henry Mine. The project included sediment basins, evaporation areas, embankments and associated civil infrastructure to support stormwater treatment, operational access and long-term site performance.

Project Overview

Evolution Mining engaged Civil IQ to undertake the detailed civil design for three key areas of the Ernest Henry Mine: the Production Evaporation Area, Sediment Basins and the Tailings Evaporation Area. The project involved the design of civil earthworks, embankments, drainage systems, access roads and associated infrastructure to support the mine's ongoing water management program.

Working within an active mining environment required practical design solutions that integrated with existing infrastructure while providing safe maintenance access and efficient stormwater management. Civil IQ delivered coordinated, RPEQ-certified designs that balanced operational requirements with constructability.

Challenges

$
Designing sediment basins within the constraints of existing mine infrastructure.
$
Optimising drainage catchments through multiple design iterations.
$
Providing safe maintenance access by increasing embankment widths in accordance with Safety in Design principles.
$
Coordinating multiple water management assets across separate operational areas.

Outcomes

$
Delivered detailed civil designs for water management infrastructure across three operational areas.
$
Produced integrated earthworks, drainage and embankment designs supporting stormwater treatment.
$
Improved long-term operational access for inspection and maintenance.
$
Delivered RPEQ-certified designs ready for construction.

Scope

$
Civil earthworks design
$
Sediment basin design
$
Embankment design
$
Geotechnical assessment
$
Site drainage design
$
Access road design
$
Consequence category assessment
$
Hydrology and hydraulics
$
12d design and drafting

Back to Projects

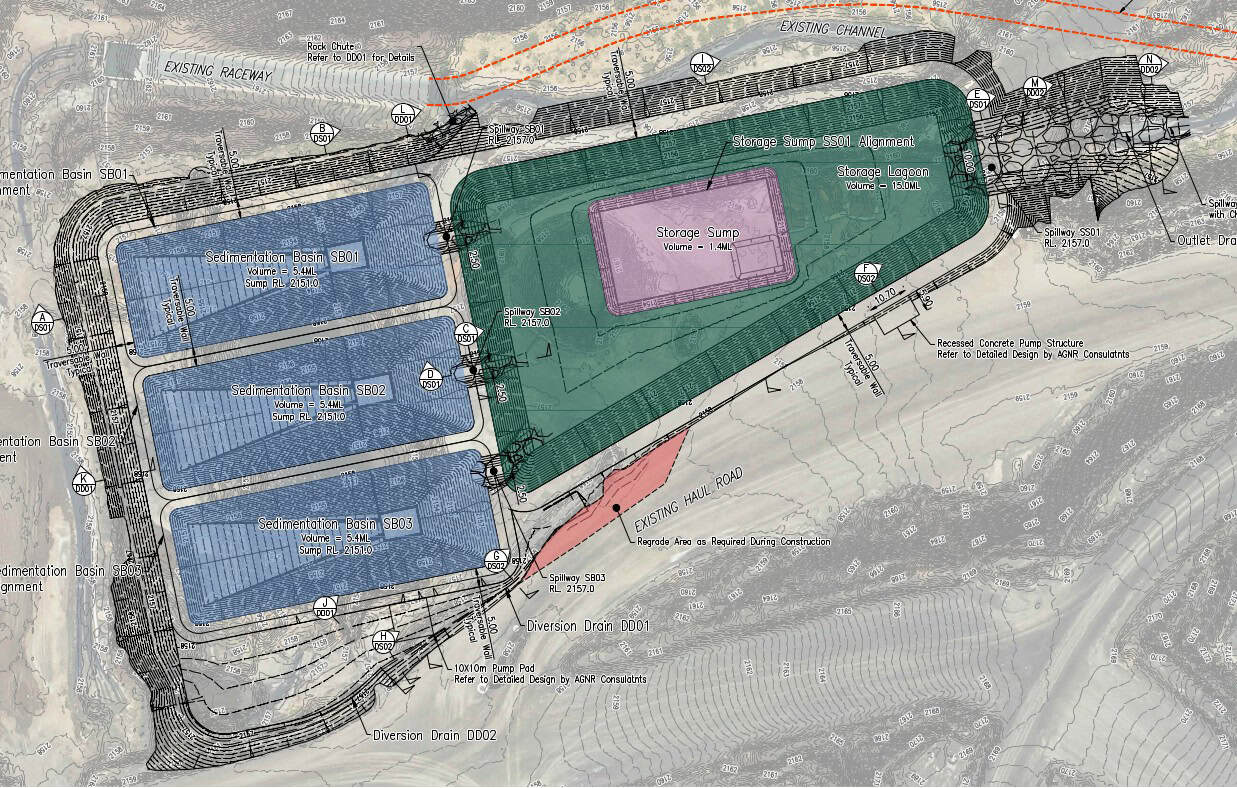

Concept layout illustrating the detailed design of sediment basins, evaporation storage, embankments and drainage infrastructure developed for Ernest Henry Mine.
